TDLib & MTProto Deep Dive: Custom Telegram Clients & Automation

verified_user TGWAY Editorial Staff • calendar_today Published Sep 11, 2026 • visibility 3,820 Views

school TELEGRAM MASTERCLASS • STEP 095 / 100

Step 095: TDLib & MTProto Deep Dive: Custom Telegram Clients & Automation

arrow_back Prev Step menu_book Curriculum Index Next Step arrow_forward

Step 095 of 100 (95%)

Executive Overview: While standard bot developers operate through the high-level HTTP Bot API, enterprise engineers, forensic auditors, and power automated systems require raw, unthrottled access to Telegram's native binary nervous system: MTProto 2.0. Through the Telegram Database Library (TDLib)—an official, battle-tested C++14 core engine—developers bypass HTTP polling proxies entirely, unlocking full 4.0 GB native payload transfers, direct peer-to-peer secret chat encryption, offline SQLite state caches, and user-account telemetry streams. In Telegram 195, we deconstruct the 5-layer TDLib architectural stack, demystify the 2048-bit Diffie-Hellman handshake, implement production-grade Python ctypes bindings, and simulate real-time binary socket multiplexing across Telegram's global data centers.

< 25ms

Binary TCP Streaming

4.0 GB

Direct Payload Transfer

16 Sockets

Parallel Multiplexing

AES-256-IGE

Hardware Crypto Engine

1. Architectural Paradigm: Standard Bot API vs. Direct MTProto 2.0

To build high-performance Telegram infrastructure, developers must understand the fundamental divergence between the intermediary HTTP Bot API and the native MTProto 2.0 binary protocol. The HTTP Bot API operates as an abstraction proxy: every request you issue (via Webhook or Long Polling) hits Telegram's public HTTP gateway, which serializes JSON, parses tokens, and repackages your data into MTProto packets before forwarding them to Telegram's core server clusters.

Dimension	Telegram Bot API (HTTP)	TDLib & Direct MTProto 2.0
Transport Layer	HTTPS REST / JSON Webhook	Direct Multiplexed TCP / Padded Obfuscated TLS
Max File Transfer	50 MB cloud limit (2 GB local server)	4.0 GB native payload streaming
Account Identity Scope	Bot identities only (@bot token)	User accounts, Bots, Supergroups, Channel Admins
Local State Caching	None (developer manages external DB)	Built-in encrypted SQLite database & offline sync
Secret Chats (E2EE)	Unsupported	Full Diffie-Hellman End-to-End Encryption
Roundtrip Latency	150ms – 450ms HTTP handshake latency	< 20ms persistent streaming binary socket

2. The TDLib 5-Layer Stack & JSON Client Architecture

Direct MTProto 2.0 communication requires complex binary serialization (Type-Language schemas), session sequencing, Diffie-Hellman key exchanges, and AES-256-IGE streaming cryptography. Rather than implementing this from scratch, Telegram open-sourced TDLib—a highly optimized, zero-dependency C++14 engine that exposes a clean, language-agnostic JSON interface:

Layer 5: Application Domain

Python, Go, Rust, Node.js, C#, or Swift Application Code

High-level business logic, UI rendering, automated archiving handlers, or AI agent orchestration.

Layer 4: Universal JSON Interface

td_json_client C-Bindings (Send, Receive, Execute)

Thread-safe, non-blocking asynchronous pipeline passing JSON payloads across language boundaries without overhead.

Layer 3: TDLib C++ Core Engine

State Synchronization, SQLite Storage & File Manager

Manages encrypted SQLite database on disk, tracks message sequence numbers, transparently recovers from network drops, and orchestrates 4GB file chunking.

Layer 2: MTProto 2.0 Cryptographic Protocol

Diffie-Hellman Handshake, AES-256-IGE & SHA-256 Hashes

Computes shared 2048-bit authorization keys, encrypts payload blocks, binds server salts, and rejects replayed packets.

Layer 1: Network Transport & Multi-DC Routing

TCP Multiplexing, FakeTLS Camouflage & DC Clusters

Maintains active socket pools to Telegram's 5 global datacenters (DC1 Miami, DC2 Amsterdam, DC3 Miami, DC4 Amsterdam, DC5 Singapore).

Production TDLib Python Binding via ctypes

tdlib_client.py TDLib JSON API

import json
from ctypes import CDLL, c_void_p, c_char_p, c_double

# 1. Load compiled shared library (libtdjson.so / tdjson.dll)
tdlib = CDLL("./libtdjson.so")

tdlib.td_json_client_create.restype = c_void_p
tdlib.td_json_client_create.argtypes = []

tdlib.td_json_client_send.restype = None
tdlib.td_json_client_send.argtypes = [c_void_p, c_char_p]

tdlib.td_json_client_receive.restype = c_char_p
tdlib.td_json_client_receive.argtypes = [c_void_p, c_double]

client = tdlib.td_json_client_create()

def send(query: dict):
    raw = json.dumps(query).encode('utf-8')
    tdlib.td_json_client_send(client, raw)

def receive(timeout: float = 1.0) -> dict:
    res = tdlib.td_json_client_receive(client, c_double(timeout))
    return json.loads(res.decode('utf-8')) if res else None

# 2. Configure TDLib Initialization Parameters
send({
    "@type": "setTdlibParameters",
    "use_test_dc": False,
    "database_directory": "./storage/tdlib_db",
    "files_directory": "./storage/tdlib_files",
    "use_file_database": True,
    "use_chat_info_database": True,
    "use_message_database": True,
    "use_secret_chats": True,
    "api_id": 1234567,              # Obtained from my.telegram.org
    "api_hash": "abcdef0123456789abcdef0123456789",
    "system_language_code": "en",
    "device_model": "Enterprise Cluster Node",
    "application_version": "2.4.0",
    "enable_storage_optimizer": True
})

# 3. Supply Database Encryption Key
send({
    "@type": "checkDatabaseEncryptionKey",
    "encryption_key": "YOUR_STRONG_ENCRYPTION_PASSPHRASE"
})

print("[TDLib] Initialized successfully. Listening for authorizationState...")

3. High-Throughput 4GB Chunking & Multi-Socket Pipeline

Under Telegram Premium and custom client automation, files up to 4.0 GB (4,294,967,296 bytes) can be transmitted without relying on cloud third-party storage. Standard HTTP clients fail when handling multi-gigabyte uploads due to memory buffering crashes and TCP timeouts. TDLib solves this through an asynchronous streaming engine:

Pipeline Stage 1

512KB Slicing & Hashing

TDLib slices the 4GB payload into exactly 8,000 distinct 512KB chunks. Each chunk receives a unique sequential index, part checksum, and temporary file_id.

Pipeline Stage 2

Multiplexed Sockets

Up to 16 concurrent MTProto TCP sockets are opened in parallel to the target Data Center. Chunks are dispatched across all active channels without blocking telemetry messages.

Pipeline Stage 3

AES-256-IGE & Server Assembly

Each 512KB block is encrypted on-the-fly inside memory before socket write. Upon receiving all parts, Telegram DC verifies the cumulative MD5 and issues a persistent cloud InputFile pointer.

4. Interactive Lab: TDLib MTProto Stream & 4GB Pipeline Simulator

Experiment with the low-level lifecycle of a TDLib MTProto client. Select your destination datacenter, configure the transport protocol, establish the Diffie-Hellman cryptographic handshake, and stream a 4GB payload through parallel binary sockets:

TDLIB CORE v1.8.25 MTProto 2.0 Binary Transport Lab

DISCONNECTED

Target Datacenter

Transport Camouflage

Payload Stream Size

Multi-Socket Stream Progress: 0 / 8,000 Chunks (0%)

          THROUGHPUT: -- MB/s
          LATENCY: -- ms
          AES-256-IGE: STANDBY


MTPROTO 2.0 RAW PACKET STREAM TD_JSON_CLIENT STREAM ACTIVE

[SYSTEM] Initialized TDLib simulator worker thread. Select datacenter and execute handshake.

6. Production Engineering FAQs & Security Directives

Q1: Can I use TDLib to operate bot tokens instead of real personal user phone numbers?

Yes! TDLib natively supports bot authentication via checkAuthenticationBotToken. This gives your bot all MTProto performance advantages—including 2GB+ file uploads, direct streaming sockets, and local SQLite state caching—without the HTTP overhead of the standard Bot API.

Q2: How does TDLib handle mobile network switching (Wi-Fi to 5G / cellular roaming)?

TDLib features native transport roaming resilience. When the underlying IP changes, TDLib automatically re-negotiates MTProto TCP transports and re-authenticates with the active Data Center session using existing session keys. Active 4GB uploads automatically pause and resume from the last acknowledged 512KB chunk without file corruption or restarting from byte 0.

Q3: How do I handle FLOOD_WAIT_X errors safely in TDLib?

Never hammer Telegram servers with rapid retries when receiving error code 420. Inspect the error string for the required delay (e.g. FLOOD_WAIT_360) and pause execution for exactly that many seconds plus a randomized 2-5 second jitter buffer. Violating flood bans repeatedly results in permanent IP subnet blacklisting.

Q4: What is the difference between Pyrogram, Telethon, and official TDLib?

Pyrogram and Telethon implement MTProto 2.0 purely in Python, parsing TL schemas within Python bytecode. TDLib is Telegram's official C++14 engine which handles all low-level memory allocation, cryptographic primitives, and SQLite database serialization in native code. Pyrogram/Telethon offer Pythonic convenience, while TDLib delivers maximum throughput and cross-language consistency.

Q5: Is it mandatory to encrypt the TDLib local database on disk?

In production environments, absolutely yes. Calling checkDatabaseEncryptionKey encrypts SQLite message stores, authentication hashes, and session keys using AES-256. If an unencrypted server instance is backed up or compromised, an attacker could extract full account sessions directly from disk.

insights Master Summary Blueprint

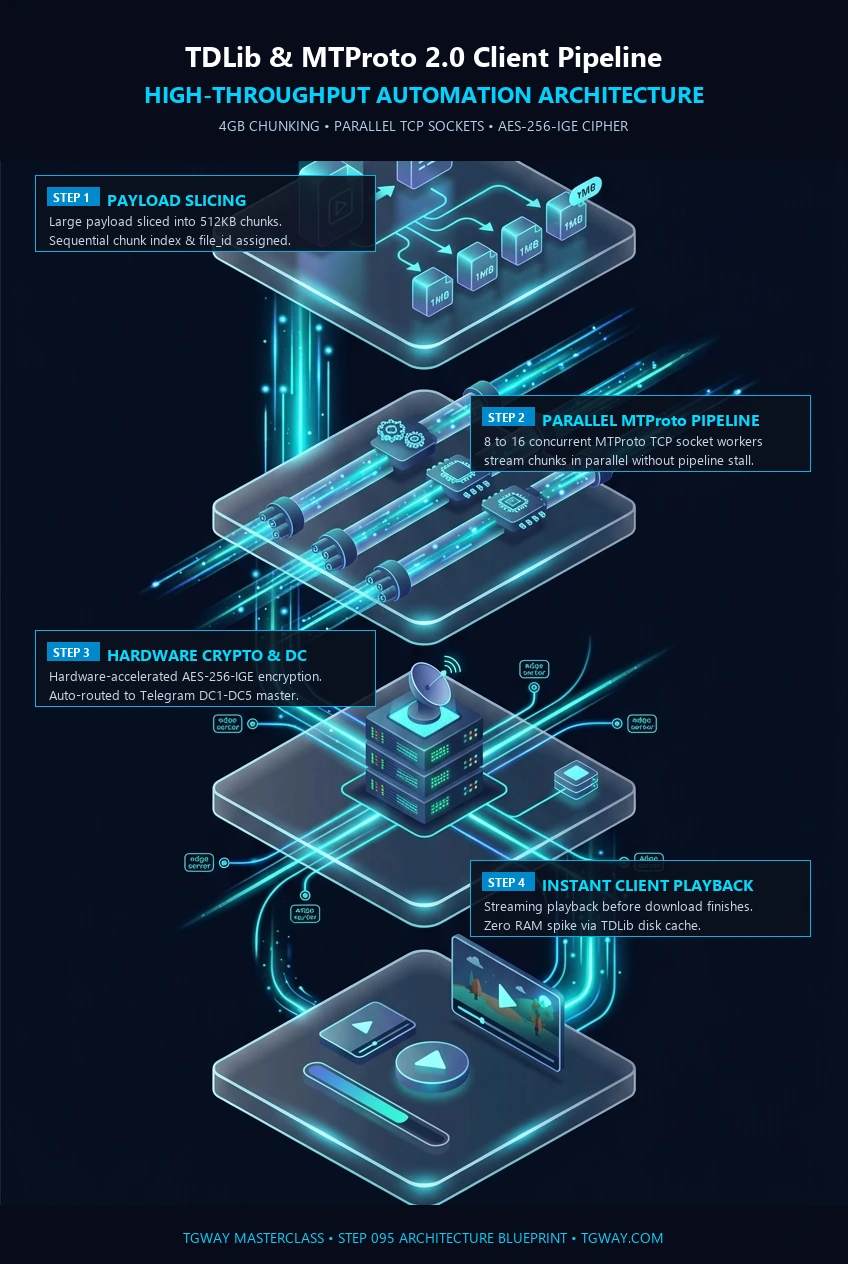

Step 095 Visual Recap: TDLib & MTProto Client Pipeline Blueprint

Four-tier high-throughput client architecture: 512KB payload chunking, parallel MTProto TCP sockets, hardware AES-256-IGE cryptography, and native instant media streaming playback.
