[Telegram 148] Desktop Chat History Export: Full HTML Web Archives & JSON Dumps for Permanent Offline Preservation

While Telegram’s multi-datacenter cloud architecture provides instant synchronization across unlimited active sessions, true enterprise data sovereignty, compliance audits, and legal dispute preservation require air-gapped local records. Telegram Desktop (TDesktop) integrates a native, client-side serialization engine capable of converting cloud dialogues into standalone Human-Readable HTML Web Archives or schema-validated Machine-Readable JSON Dumps. This guide dissects the internal mechanics of the Desktop Export utility, establishes strict cold-storage hardening protocols, and provides automated Python scripts for parsing exported forensic records.

Key Takeaways: Desktop Chat Export Architecture

Exclusive to Desktop: The full Chat History Export engine is implemented exclusively in Telegram Desktop (C++/Qt) and is not available on mobile clients due to storage and battery constraints.
HTML vs. JSON Dual Options: HTML creates a zero-dependency offline web app navigable in any browser; JSON outputs raw, structured key-value arrays ideal for forensic audits, database ingestion, and regex analysis.
Granular Size Ceilings: Administrators can cap media downloads from 1 MB up to 2,000 MB per file, avoiding multi-gigabyte disk overflows caused by large videos.
Secret Chats Exclusion: End-to-End Encrypted Secret Chats live strictly on mobile hardware memory and are never serialized into cloud export snapshots.

1. Technical Architecture: MTProto Chunk Streaming & Serialization

When you trigger an export in Telegram Desktop, the client initiates a background task that streams messages and media directly from Telegram's distributed datacenters:

Pipeline Stage 1

Session Handshake & Auth Verification

TDesktop negotiates RPC permissions. For full account dumps on newly authorized sessions, a mandatory 24-hour security delay is enforced by Telegram's fraud engine to prevent unauthorized exfiltration.

Pipeline Stage 2

Multiplexed Chunk Retrieval

Messages are fetched in batches of 100 via MTProto RPC queries, while associated photos, voice notes, and video files are streamed in parallel 512KB chunks directly to the designated local cache.

Pipeline Stage 3

Filesystem Serialization

Raw payloads are formatted into either static HTML pages with CSS/JS search scripts or a single unified JSON document (result.json) with relative file paths.

2. Comparison Matrix: HTML Web Archive vs. Machine-Readable JSON

Feature Dimension	Human-Readable HTML	Machine-Readable JSON
Target Consumer	Legal teams, human reviewers, offline browsing	Python scripts, ETL pipelines, database ingestion
Visual Fidelity	100% replica of Telegram Desktop UI (bubbles, avatars)	Raw serialized key-value attributes without styling
Search Mechanics	In-browser JS search bar and DOM Ctrl+F search	Grep, jq, SQLite import, ElasticSearch, and Python
Media Referencing	Relative HTML tags (`<img src="photos/...">`)	JSON path strings (`"photo": "photos/..."`)
Offline Portability	Instant double-click viewing in Chrome, Safari, Edge	Requires JSON viewer or analysis environment

3. Step-by-Step Production Export Workflow

Telegram Desktop supports two distinct export scopes: targeting a single dialogue or archiving your entire account cloud footprint.

Workflow A: Single Chat Forensic Export

Open the target group, channel, or direct chat in Telegram Desktop.
Click the top-right Three-Dot Menu (⋮) → Select Export chat history.
Check target media (Photos, Videos, Voice) and configure the Size limit slider.
Select format: Human-readable HTML or Machine-readable JSON.
Specify Date Range (optional) and click Export.

Workflow B: Account-Wide Cloud Archive

Open Settings → Advanced in Telegram Desktop.
Scroll to the bottom and click Export Telegram data.
Select Account Info, Contacts, Personal Chats, and Public Channels.
Set global media file size limits to prevent local disk exhaustion.
Click Export and retrieve files from Downloads/Telegram Desktop/DataExport/.

4. Interactive Lab: TDesktop Export Simulator & Schema Inspector

Configure export parameters below to simulate MTProto chunk extraction, calculate estimated disk footprints, inspect the resulting directory tree, and toggle between rendered HTML and raw JSON forensic payloads:

LAB EXPERIMENT

Desktop Export Engine & File Structure Inspector

READY

Export Format

Per-File Media Ceiling: 100 MB

Export Scope

Photos & Avatars Video Files (< Ceiling) Voice & Video Notes Generic Files & PDFs

Total Messages

4,200

Media Files

684

Estimated Storage

1.85 GB

Write Throughput

74 MB/s

📁 FILESYSTEM ARCHIVE TREE [HTML Layout]

            HTML Offline Viewer

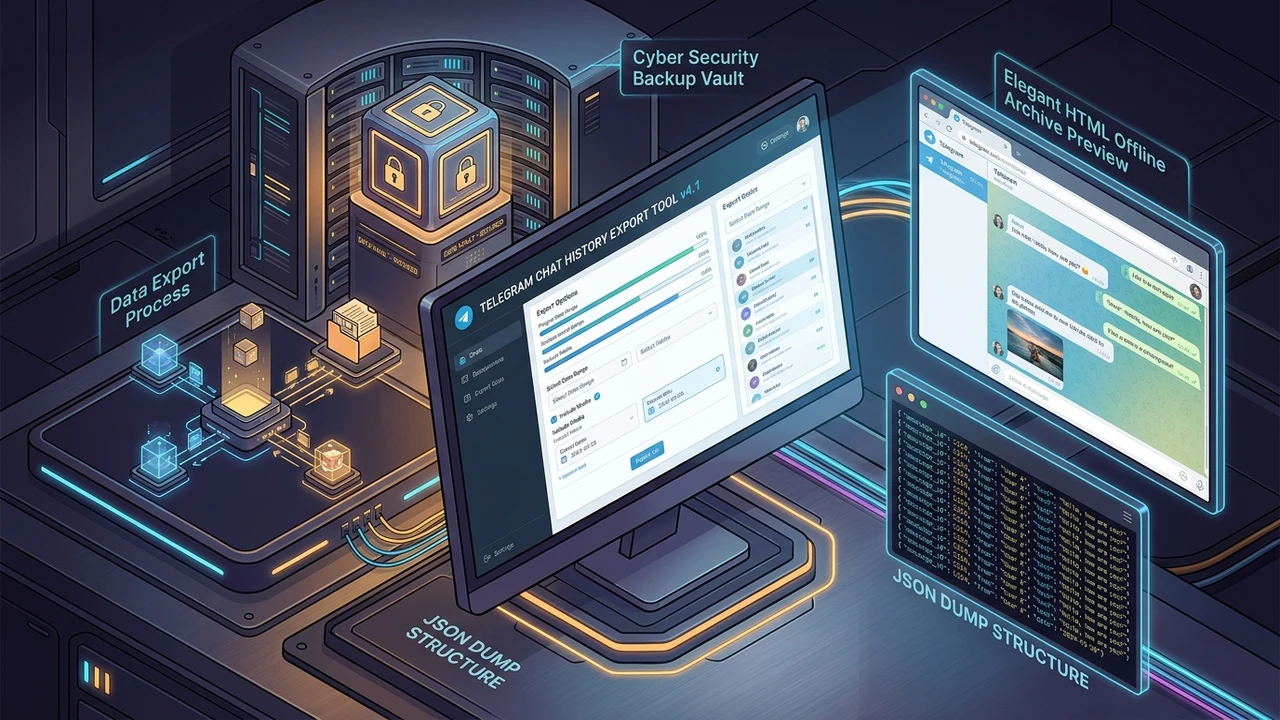

5. Telegram Desktop Chat Export Architecture Blueprint

The detailed architectural blueprint below illustrates the complete export flow: MTProto chunk streaming, format selection routing, local file tree hierarchy, and offline in-browser search mechanics:

Click to Open High-Resolution Master Blueprint

6. Automated Forensics: Parsing JSON Dumps with Python

When selecting Machine-Readable JSON, you can quickly analyze large conversation corpora using standard Python libraries:

import json
from pathlib import Path

export_path = Path("export_results/result.json")
with open(export_path, "r", encoding="utf-8") as f:
    data = json.load(f)

messages = data.get("messages", [])
print(f"Total Messages Analyzed: {len(messages)}")

# Filter high-priority messages containing specific keywords
keywords = ["urgent", "invoice", "contract", "audit"]
flagged = []

for msg in messages:
    if msg.get("type") == "message":
        text = msg.get("text")
        raw_text = "".join([c if isinstance(c, str) else c.get("text", "") for c in text]) if isinstance(text, list) else str(text)
        if any(k in raw_text.lower() for k in keywords):
            flagged.append({"id": msg["id"], "date": msg["date"], "from": msg.get("from"), "snippet": raw_text[:120]})

print(f"[✓] Flagged {len(flagged)} audit records for forensics.")

7. Frequently Asked Questions (FAQ)

Can I export End-to-End Encrypted Secret Chats?

No. By cryptographic design, Secret Chats are client-only, ephemeral, and stored exclusively on the mobile device hardware. They never synchronize to Telegram's cloud datacenters or Desktop clients.

Why does Telegram impose a 24-hour security lock on account exports?

When an export is requested from a newly logged-in desktop session, Telegram enforces a 24-hour quarantine delay and alerts all active devices. This defense mechanism ensures that if an attacker compromises your SMS or session token, you have 24 hours to terminate their session before data exfiltration can occur.

Are deleted messages included in the exported files?

No. Once a message is deleted via the Telegram API, its database record and media pointers are permanently eradicated across all cloud clusters. Exports only serialize messages currently existing in the cloud at the moment of extraction.

8. Operational Checklist & Next Steps

✅ Installed official Telegram Desktop on an authorized workstation.
✅ Selected HTML for visual audits or JSON for programmatic parsing.
✅ Configured media file size ceilings to prevent local drive capacity saturation.
✅ Generated a SHA-256 integrity hash across result.json for evidence preservation.
✅ Encrypted offline archive folders with AES-256 prior to cold storage transfer.
