Telegram Voice Chat Overlay Architecture: Android WindowManager Overlays, System Alert Windows & Real-Time Speaker Telemetry
Participating in large group audio calls while playing mobile games, reviewing Google Maps, or multitasking across productivity apps requires seamless background voice controls. On Android, Telegram engineers solved this with the Voice Chat Overlay Widget—a floating, system-level glassmorphic pill rendered directly via Android’s WindowManager. It delivers instant microphone toggle controls, magnetic edge-docking physics, and real-time WebRTC audio energy halos showing who is currently speaking.

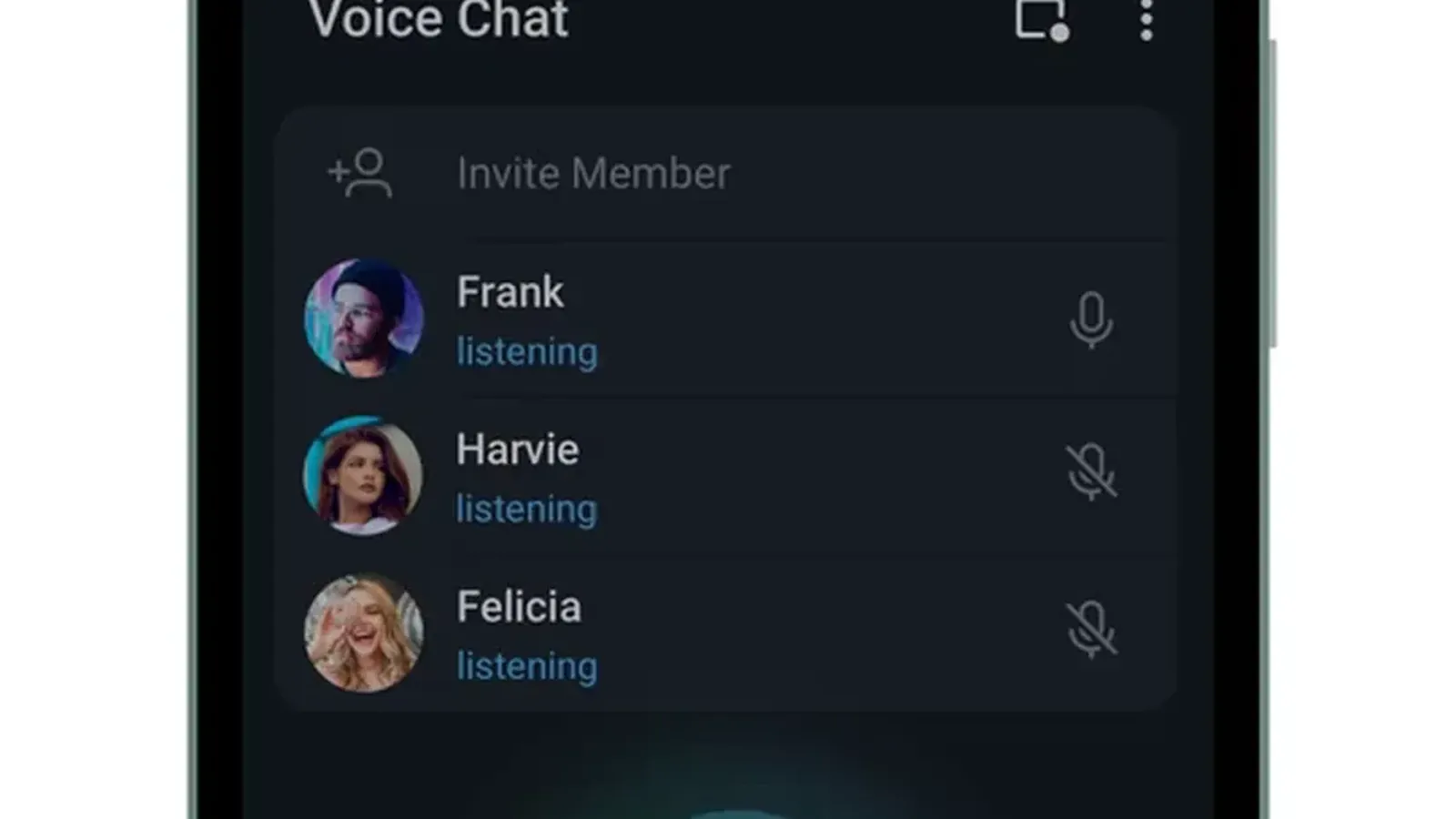

Watch: Enabling the Floating Voice Chat Overlay Widget on Android
Official demonstration from Telegram Tips (#191) showing how Android users can toggle the floating overlay widget to control their microphone and monitor active speakers while multitasking.
layers 1. Android WindowManager & System Alert Window Architecture
Unlike standard Android activities that pause or stop when navigating to the home screen, Telegram’s Voice Chat widget exists outside the application task stack. It is instantiated by a persistent foreground audio service using Android’s WindowManager API:
Touch Event Delegation & Non-Focusable Flags
The critical flag is FLAG_NOT_FOCUSABLE. This instructs Android SurfaceFlinger to forward all touch inputs outside the pill widget's bounding box directly to the underlying foreground application (e.g., your game or navigation map). Touches originating within the widget boundary are captured to handle dragging, muting, or expanding the voice chat drawer.
Simulate Android’s floating voice widget below. Tap the microphone icon to toggle mute, switch active speakers to see audio energy halos, and click Snap Edge to test magnetic docking physics.
animation 2. Magnetic Edge Docking & Spring Physics
Overlay widgets that sit dead center in the screen disrupt user interactions with background games or reading apps. Telegram implements inertial spring docking:
- Screen Midpoint Threshold: On gesture release (
ACTION_UP), the system compares the widget's horizontal center againstscreenWidth / 2. - SpringForce Physics: An under-damped spring animation smoothly animates the widget to the nearest edge (left or right margin) with a 16px safety padding.
- Drop-to-Dismiss Target: Dragging downward reveals a red circular target zone at the bottom of the screen. Dropping into this circle dismisses the overlay without disconnecting from the ongoing audio call.
graphic_eq 3. Real-Time Audio Energy & Speaking Halos
Knowing who is speaking without switching back to Telegram is essential for group coordination:
| Acoustic State | Audio Level Threshold | Visual Telemetry on Overlay |
|---|---|---|
| Silent / Listening | < -50 dBFS | Static avatar dot; zero outline animation. |
| Active Speech | > -40 dBFS | Luminous glowing green ring expanding in proportion to volume. |
| Self Muted | Hardware Mute Flag True | Microphone icon turns solid red; input stream disconnected. |
checklist 4. Step-by-Step Operator Blueprint
How to activate the floating overlay widget on Android:
Enabling the Voice Chat Widget
- Join any ongoing Voice Chat in a Telegram group or channel.
- Tap the Overlay Icon (floating square badge) at the top of the voice chat drawer.
- If prompted for the first time, grant Telegram permission for "Display over other apps" in Android Settings.
- Press the Home button to leave Telegram.
- The compact floating capsule appears over your home screen, games, or apps for continuous control.

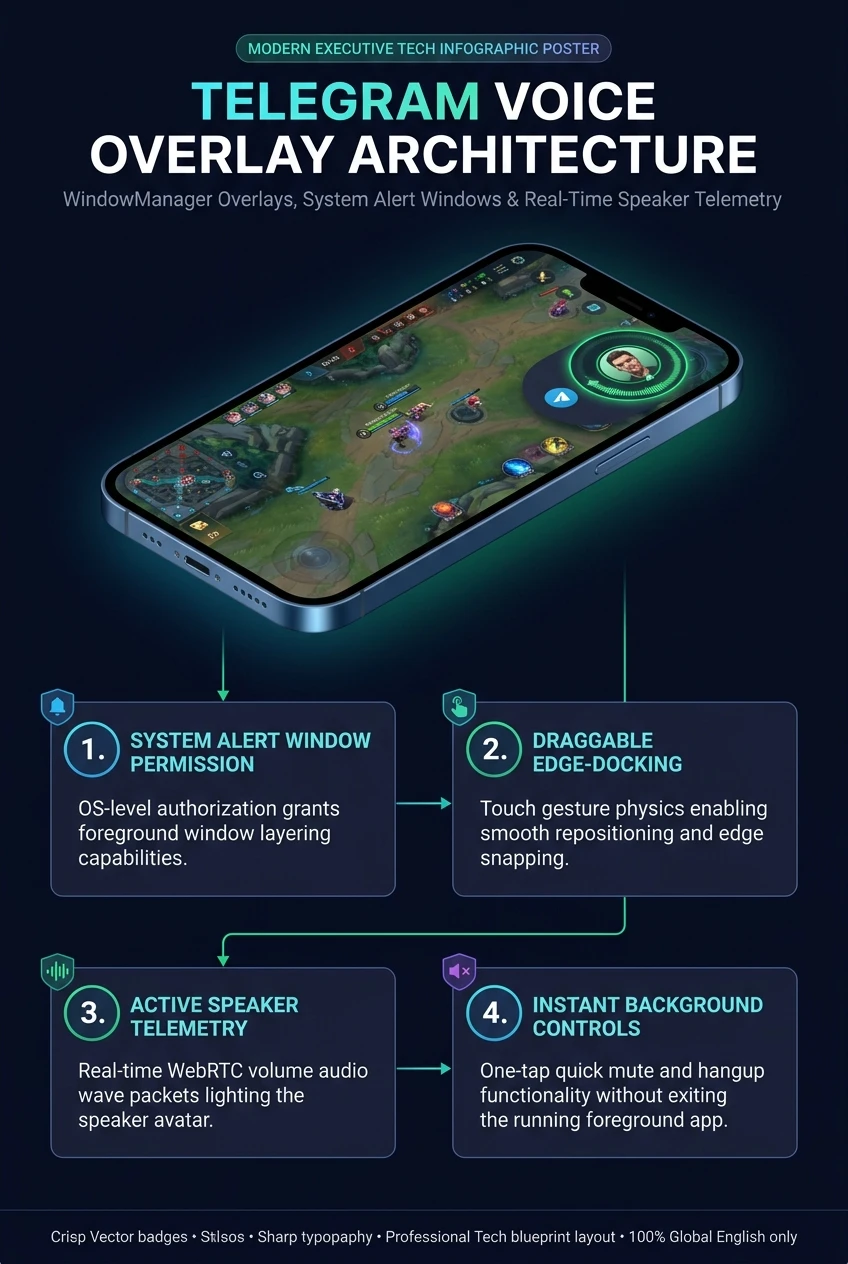

Telegram Voice Chat Overlay Architecture at a Glance
A comprehensive visual flowchart summarizing Android WindowManager overlays, touch delegation, magnetic edge snapping, and WebRTC speaker halos.
