Inline Bots Engine: Global Real-Time Queries, Edge CDN Caching & Seamless Media Dispatch
Inline bots redefine bot interactions by eliminating the friction of adding bots to chats or issuing noisy slash commands. By typing
@bot query directly in any message bar, users query global databases, search GIFs, summon Wikipedia summaries, and dispatch rich media cards with zero conversation interruption.
< 30ms
Telegram Edge Cache Response
Any Chat
Universal 1-on-1 & Group Execution
Rich Media
Articles, GIFs, Audio, Stickers
Scalable
CDN Caching & Debounce Throttling
play_circle

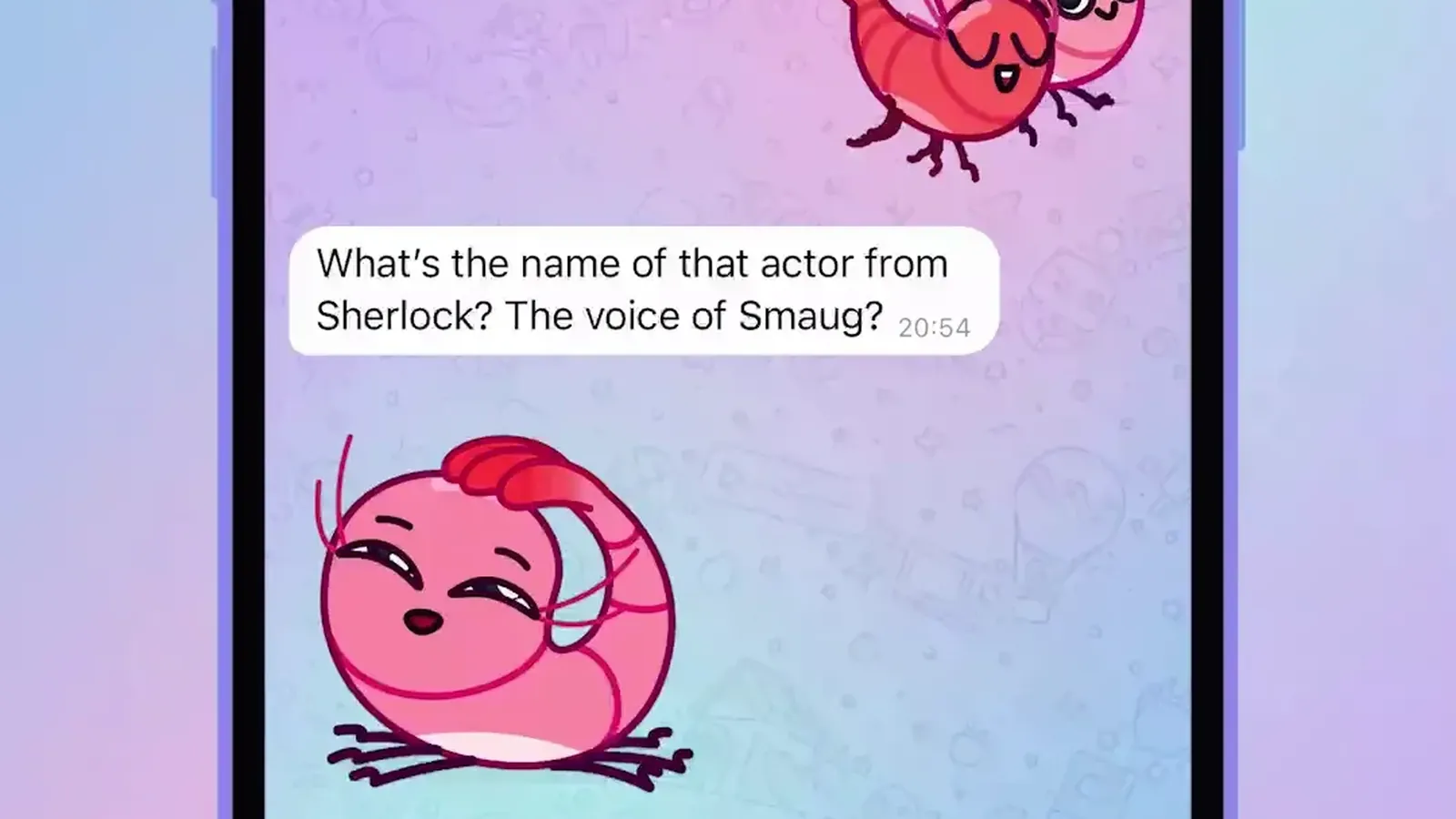

Telegram Official Tip #95: Instant Queries via Inline Bots (@gif, @wiki, @youtube)
psychology
How Inline Bots Work Under the Hood
Unlike conversational bots that require users to hit /start or invite the bot to a channel, inline bots are stateless real-time search services. The communication pipeline functions in 4 microsecond-grade stages:
keyboard
1. Debounced Keystroke Capture
When the user enters
@botname [text], the Telegram client halts standard text submission and sends an InlineQuery update after a 300ms debounce interval.
dns
2. Edge CDN RAM Cache
Telegram data centers inspect their in-memory cache for the matching
(bot_id, query) key. If found within the bot's declared cache_time, results return without webhook overhead.
dynamic_feed
3. Webhook Payload Assembly
On cache miss, the bot backend executes third-party lookups and calls
answerInlineQuery, returning up to 50 structured InlineQueryResult items.
touch_app
4. Client Card Render & Send
The client displays a floating horizontal or vertical card preview above the keyboard. Tapping any item directly inserts the rich card and inline action buttons into the active chat.
terminal
Live Inline Query Studio & Webhook Simulator
Simulated Edge Engine
Try clicking a sample inline query preset below or type in the input bar:
code
Bot API Specification: answerInlineQuery Schema
Building an inline bot requires registering the inline mode via @BotFather using /setinline, followed by handling inline_query webhook updates:
// 1. Inbound Webhook Update from Telegram
{
"update_id": 9812048,
"inline_query": {
"id": "1049281903",
"from": { "id": 5829103, "first_name": "Alex" },
"query": "telegram",
"offset": ""
}
}
// 2. Outbound Response via answerInlineQuery
POST https://api.telegram.org/bot<TOKEN>/answerInlineQuery
{
"inline_query_id": "1049281903",
"cache_time": 300,
"is_personal": false,
"results": [
{
"type": "article",
"id": "wiki_tg",
"title": "Telegram (software)",
"description": "Cloud-based encrypted instant messaging service.",
"input_message_content": {
"message_text": "📖 **Telegram**: Globally accessible cloud messaging with MTProto encryption."
},
"reply_markup": {
"inline_keyboard": [[{ "text": "Read Full Wiki", "url": "https://en.wikipedia.org" }]]
}
}
]
}
tune
Architectural Comparison: Inline vs Standard Bots
| Evaluation Vector | Inline Bot Engine | Conversational Bot | Telegram Mini App (TMA) |
|---|---|---|---|
| Invocation Context | Any chat via @bot query |
Direct DM or added to group | Menu button, keyboard CTA, link |
| UI Presentation | Floating cards above keyboard | Standard chat message bubbles | Full-screen sandboxed Webview |
| Chat Intrusion | Zero (dispatches only on card tap) | High (generates command logs) | Zero (runs in modal popup) |
| Server Caching | Edge CDN caching (cache_time) |
None (every command hits backend) | Standard HTTP browser caching |
| Optimal Workload | Instant media/info search | Complex workflows & forms | Rich Web3 apps & games |
account_tree

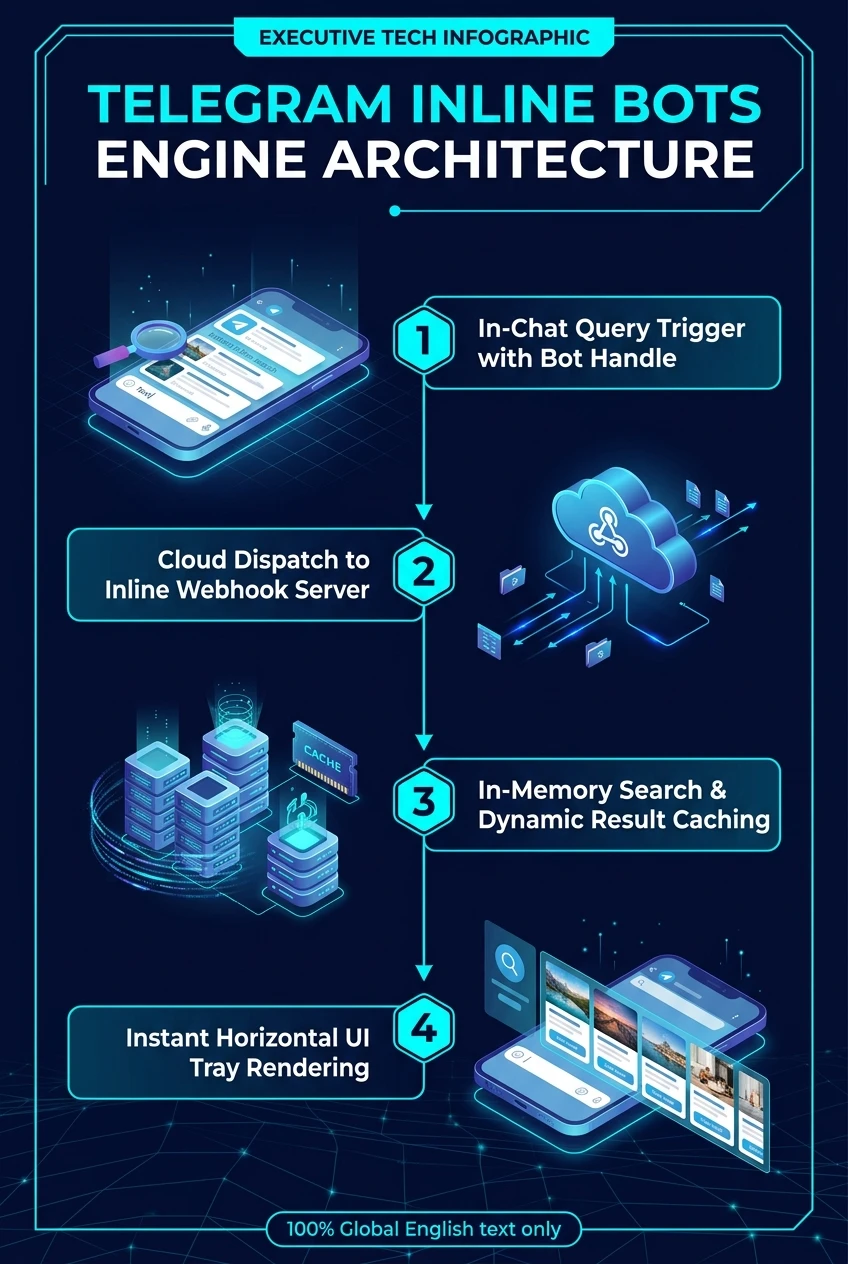

One-Page Executive Infographic
Inline Bots Engine Architecture at a Glance
A complete visual blueprint mapping client debounce capture, Telegram Edge CDN caching, webhook dispatch, and floating carousel interaction.
💡 Tip: Click the image above to view the ultra-sharp full-resolution infographic in the interactive lightbox viewer.
