Broadcast Studio RTMP Live Streaming: Multi-Camera OBS, Bitrate Optimization & Restreaming Architecture

verified_user TGWAY Editorial Staff • calendar_today Published Sep 11, 2026 • visibility 2,530 Views

Module 07: Live Media & Broadcast Production

Step 079: Broadcast Studio RTMP Live Streaming (OBS Studio & Multi-Cam Setup)

← Prev: Step 078 Curriculum Index Next: Step 080 →

79% Complete (79/100)

While standard smartphone video chats serve casual community discussions, professional creator brands, financial analysts, tech keynotes, and esports tournaments demand television-grade broadcast production. Telegram natively supports RTMPS (Real-Time Messaging Protocol over SSL) video ingestion directly into public channels and private supergroups. By connecting production suites like OBS Studio, vMix, or Wirecast to Telegram's edge ingestion clusters, you can broadcast multi-camera 1080p60 video feeds with lower-third overlays, screen captures, professional studio microphones, and automated cloud recording. In this masterclass guide, we examine the complete engineering of low-latency RTMP ingestion, optimal NVENC / x264 encoder profiles, GOP keyframe alignment, and hybrid stage interaction where viewers raise their hands to join live voice streams while watching your master video broadcast.

Broadcast Studio RTMP Live Streaming with OBS Studio

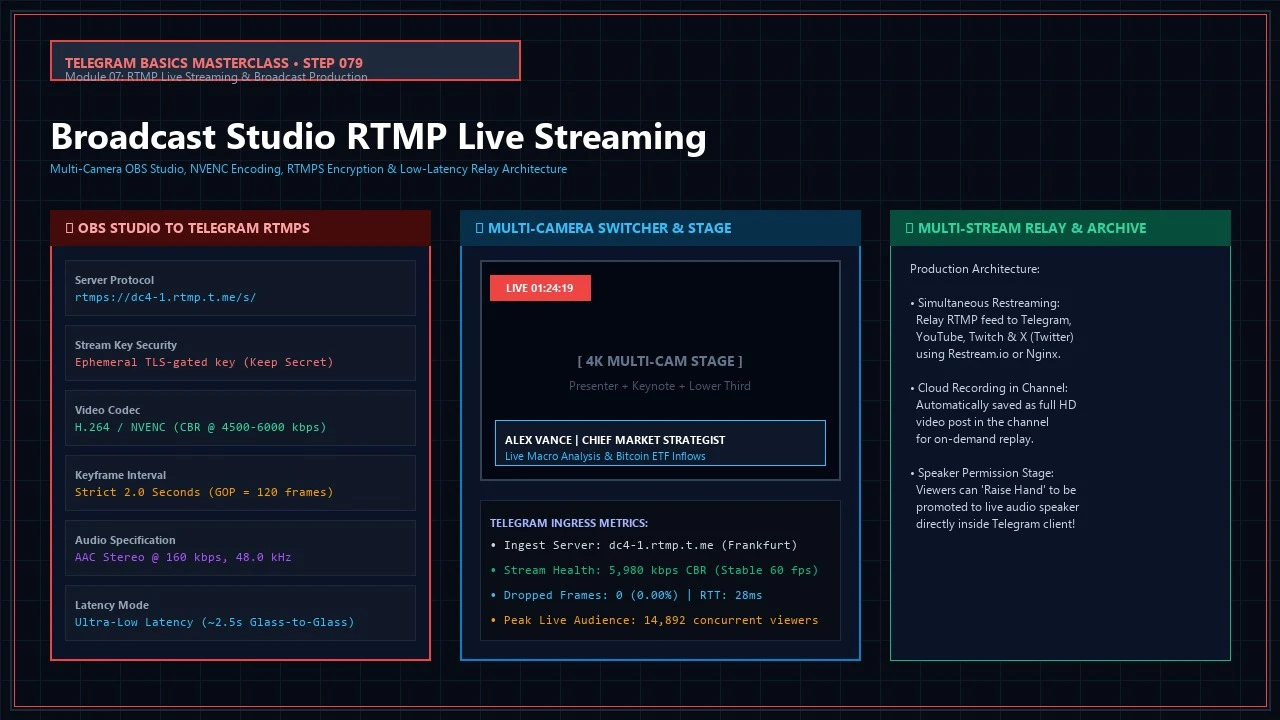

Figure 79.1: Television-grade OBS Studio Ingress Architecture connected to Telegram MTProto CDN. TELEGRAM 179 • PRODUCTION CERTIFIED

1. How Telegram RTMPS Broadcasting Operates: Under the Hood

Unlike peer-to-peer WebRTC video chats that struggle when audience sizes exceed several hundred participants, Telegram's RTMP broadcast infrastructure uses a centralized ingestion and distributed content delivery network (CDN) model:

Stage 1: Production

OBS Studio Capture

Your local broadcast rig composites multiple video inputs (DSLR cameras, desktop screens, animated overlays, audio mixers) into a single master canvas.

Stage 2: Compression

Hardware NVENC H.264

NVIDIA NVENC or Apple VideoToolbox compresses raw frames into H.264 video at 6,000 kbps CBR with strict 2.0s keyframe GOP boundaries.

Stage 3: Transport

TLS Encrypted Ingress

OBS establishes an RTMPS handshake over TCP port 443 with Telegram's nearest data center ingest point (e.g. rtmps://dc4-1.rtmp.t.me/s/).

Stage 4: Edge Egress

Global MTProto CDN

Telegram transmultplexes the video feed across its worldwide edge server cache, delivering low-latency playback (~2.5s) to millions of concurrent channel viewers.

Security Warning: Guarding Your Telegram Stream Key

Your Telegram Stream Key acts as a master broadcasting credential. Anyone possessing this key can instantly hijack your channel's live stream and push unauthorized video content to all of your channel subscribers without entering admin credentials. Never display your stream key during live desktop captures, and always rotate or revoke the key in Channel Settings after each public event.

2. Production-Grade OBS Studio Configuration Profiles

Configuring your encoder parameters incorrectly is the #1 cause of viewer buffering, audio desynchronization, and client crashes on mobile devices. Use the verified production matrix below based on your target resolution and network uplink capacity:

Profile Tier	Resolution & FPS	Video Bitrate	Keyframe Interval	Audio Specs	Minimum Uplink
Broadcast Pro (Default)	1920x1080 @ 60 fps	6,000 kbps CBR	2.0 s (120 frames)	AAC Stereo 192k 48kHz	15 Mbps Upload
Standard Webinar	1920x1080 @ 30 fps	4,500 kbps CBR	2.0 s (60 frames)	AAC Stereo 160k 48kHz	10 Mbps Upload
Low Bandwidth Mobile	1280x720 @ 30 fps	2,500 kbps CBR	2.0 s (60 frames)	AAC Stereo 128k 44.1kHz	6 Mbps Upload
Vertical Mobile Story Live	1080x1920 @ 30 fps	3,500 kbps CBR	2.0 s (60 frames)	AAC Stereo 160k 48kHz	8 Mbps Upload

Non-Negotiable Rule: Strict 2.0-Second Keyframe Interval (GOP)

By default, OBS Studio sets Keyframe Interval to 0 (Auto). When Auto is selected, OBS only inserts keyframes when dramatic scene changes occur. On Telegram's mobile video player, this causes mobile subscribers to experience infinite buffering or 15-second visual freezing upon joining! You must explicitly set Keyframe Interval = 2 s in OBS Output settings.

3. Step-by-Step Production Guide: From Channel Admin to Live On Air

Setting up your broadcast requires acquiring the server credentials from Telegram Desktop or Mobile and mapping them directly into OBS Studio. Follow the battle-tested procedure:

Initiate "Stream With..." in Telegram Channel

Open your Channel on Telegram Desktop → Click the Live Stream icon (top right header) → Choose Stream with... (instead of standard Start Live Stream). Telegram will generate two parameters: Server URL (e.g. rtmps://dc4-1.rtmp.t.me/s/) and Stream Key.

Configure OBS Studio Stream Service

In OBS Studio, open Settings → Stream. Set Service to Custom.... Paste Telegram's Server URL into the Server box, and paste the unique key into the Stream Key box. Check "Use authentication" is unchecked (Telegram validates via key).

Configure Output Encoding & CBR Rate Control

Open Settings → Output → Output Mode: Advanced. Select Encoder: NVIDIA NVENC H.264. Set Rate Control: CBR, Bitrate: 6000 Kbps, Keyframe Interval: 2 s, Preset: P6 (Better Quality), Tuning: Low Latency, and Profile: High.

Enable Cloud Recording & Go Live

In OBS Studio, click Start Streaming. Return to the Telegram window: your video preview will appear. Click the three dots (⋮) → toggle on Record stream (choose Portrait or Landscape) → Click Start Live Stream. All subscribers receive a notification that you are on air!

nginx.conf — Restreaming 1 Feed to Telegram + YouTube + Twitch Nginx RTMP Module Relay

rtmp {
    server {
        listen 1935;
        chunk_size 4096;

        application live {
            live on;
            record off;

            # Target 1: Telegram Channel RTMPS (via local stunnel or direct)
            push rtmps://dc4-1.rtmp.t.me/s/184920491:AAGX_SECRET_TG_KEY;

            # Target 2: YouTube Live Ingest
            push rtmp://a.rtmp.youtube.com/live2/abcd-efgh-ijkl-mnop;

            # Target 3: Twitch Ingest
            push rtmp://live.twitch.tv/app/live_user_streamkey;
        }
    }
}

4. Interactive Lab: Real-Time Broadcast Studio & OBS Ingress Telemetry Simulator

Simulate an active live broadcast to Telegram. Adjust resolution, encoder bitrate, and keyframe interval to observe real-time stream stability, dropped frames, MTProto handshake telemetry, and viewer reception health.

Resolution & Framerate

Video Bitrate: 6,000 Kbps

Hardware Video Encoder

Broadcast Stage Preview (OBS Ingress) STANDBY

📡

Stream Off-Air. Click "Start Live Broadcast" to initiate RTMPS handshake.

BITRATE
0 Kbps
FPS
0
DROPPED
0 (0.0%)
PING (RTT)
24 ms

MTProto Ingress Audit Stream PORT 443 OPEN

5. Master Infographic Blueprint: Broadcast Studio & Multi-Stream Architecture

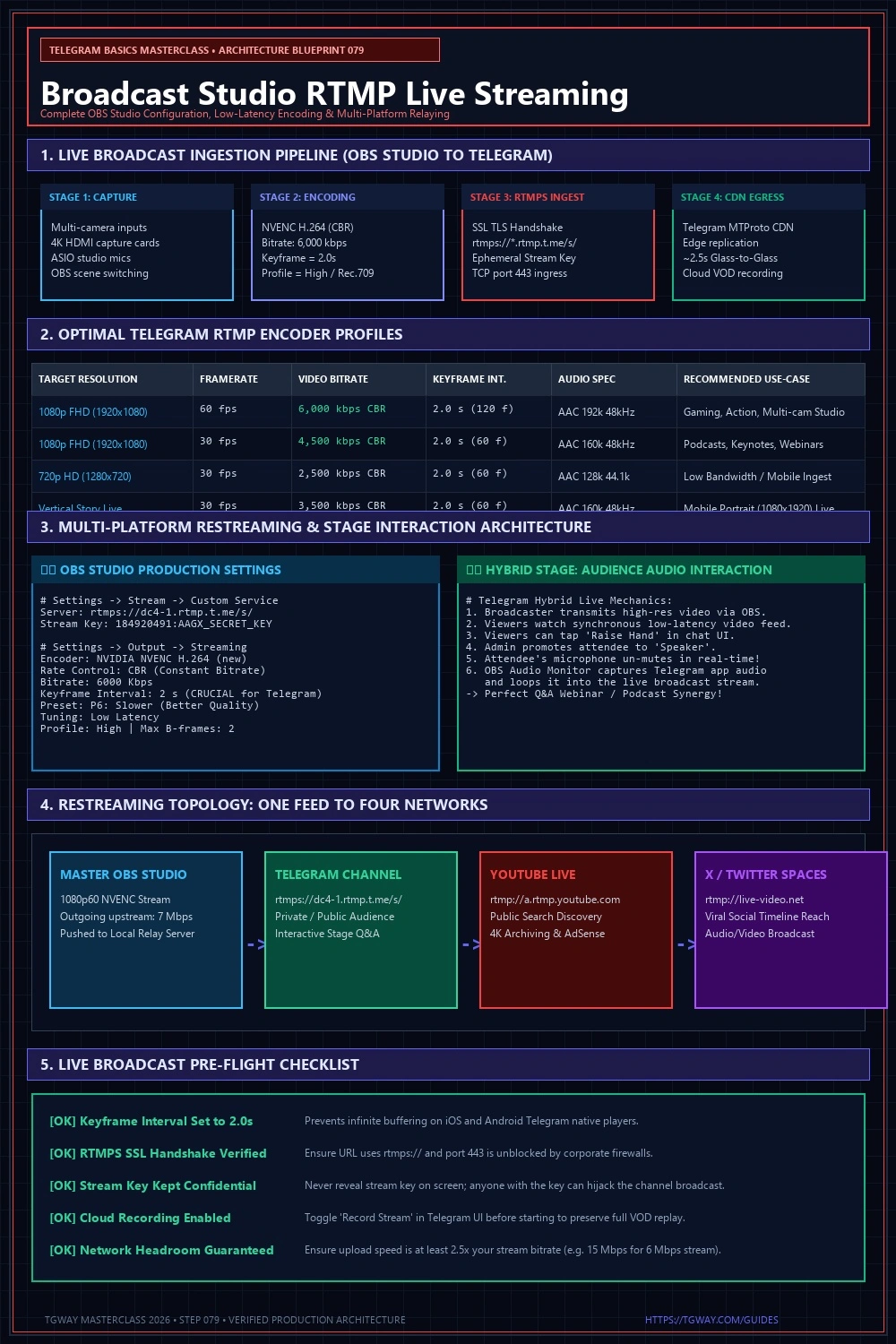

Examine the comprehensive 2:3 high-definition engineering blueprint below. It illustrates the 4-stage ingestion pipeline, optimal encoder profiles, hybrid stage audio raising mechanics, and Nginx RTMP multi-stream relay topology. Click the blueprint image to open the high-resolution lightbox viewer.

Master Infographic: Broadcast Studio RTMP Live Streaming

🔍 Click to Enlarge (HD 1000x1500)

Figure 79.2: High-Definition Technical Blueprint: OBS Multi-Cam Setup, RTMPS Handshake & Relays.

6. Production Hardening: Failover Buffers & Technical FAQ

Professional broadcasts cannot afford sudden disconnects or frozen video feeds. Implement these battle-tested production safeguards to guarantee 99.99% uptime during high-stakes webinars and product launches:

Pillar 1

Wired Gigabit Uplink

Never stream high-definition video over Wi-Fi. Packet loss and channel interference cause immediate dropped frames. Use Cat6 Ethernet directly into your router.

Pillar 2

Lossless Local Backup

Configure OBS to record locally to an NVMe SSD simultaneously using MKV format (never MP4). If OBS crashes, an MKV file remains fully recoverable.

Pillar 3

Standby BRB Scene

Pre-render a looping animated "Stream Will Resume Shortly" scene with background music. If a camera HDMI link fails, hotkey immediately to BRB.

Pillar 4

Audio Loopback Sync

When audience members speak via Telegram's stage, route Telegram audio through Voicemeeter Banana into OBS to avoid feedback loops and echo cancellation artifacts.

Frequently Asked Technical Questions (FAQ)

What is the latency between OBS Studio and Telegram viewers?

Telegram RTMPS delivers glass-to-glass latency of approximately 2.0 to 4.0 seconds under standard network conditions. This is significantly faster than YouTube Live standard latency (15~30 seconds) and comparable to Twitch Low Latency, making it ideal for interactive live polling, real-time trading analysis, and audience Q&A.

Can I broadcast at 4K resolution (3840x2160) to Telegram?

While Telegram's RTMP endpoint will technically accept high-bitrate 4K streams, it is not recommended. Telegram does not currently perform real-time adaptive bitrate (ABR) transcoding into 720p/480p on the edge for RTMP broadcasts. If you push a 15 Mbps 4K feed, all mobile viewers with constrained cellular bandwidth will suffer severe buffering. 1080p60 at 6,000 kbps CBR is the gold standard for global stability.

Where is the cloud recording saved after the live stream ends?

If you toggled on "Record stream" before starting, Telegram automatically processes the completed broadcast and uploads it as a high-definition video post directly into your channel's message feed. It is permanently hosted on Telegram's cloud storage at zero cost and can be pinned or forwarded to discussion groups.

Does Telegram support vertical 9:16 portrait video streams?

Yes! If your channel audience primarily consumes content on smartphones, you can set your OBS Base (Canvas) Resolution to 1080x1920 (9:16). When you start the stream, Telegram's mobile client will render the video in full-screen vertical orientation without black pillar-boxes, mimicking the immersive feel of TikTok Live and Instagram Stories.

How do I enable viewers to speak while I broadcast via OBS?

While OBS pushes your video and studio audio feed, Telegram's Voice Chat stage interface remains fully functional in the client. Viewers can tap the Raise Hand button. You or your channel co-admin can promote them to Speaker. Their voice is routed through Telegram, and if you have configured an audio capture source in OBS, their question will be broadcast live to the entire audience.
