Python Telegram Bot Development: ptb v20+ Async Architecture & FSM

verified_user TGWAY Editorial Staff • calendar_today Published Sep 11, 2026 • visibility 3,620 Views

Module 08: Bots, TMA Mini Apps & Web3 TON Ecosystem

Step 093: Python Telegram Bot Development: ptb v20+ Async Architecture

← Prev: Step 092 Curriculum Index Next: Step 094 →

93% Complete (93/100)

While no-code tools provide rapid prototyping, production-grade bots that process thousands of transactions, orchestrate complex conversational dialogs, and integrate custom Web3 logic demand programmatic mastery. The undisputed standard for Python developers is python-telegram-bot (v20+). Rebuilt from the ground up to embrace native Python asyncio coroutines, PTB v20 introduces the ApplicationBuilder pattern, type-hinted context handlers, multi-turn Finite State Machines (ConversationHandler), session persistence tiers, and centralized error handling. In this masterclass guide, we deconstruct the architecture of high-performance asynchronous Python bot engineering.

Figure 93.1: PTB v20 Asyncio Dispatcher, ConversationHandler FSM & Session Persistence. TELEGRAM 193 • PYTHON ASYNC

1. ApplicationBuilder & The Native Asyncio Coroutine Pipeline

In legacy PTB versions (v13 and earlier), handlers ran in synchronous worker threads, leading to thread exhaustion and blocking bottlenecks. In PTB v20+, every update handler is an asynchronous coroutine scheduled onto the active asyncio event loop:

        ptb_async_core.py
        Python 3.11+ / ptb v20.8


from telegram import Update
from telegram.ext import ApplicationBuilder, CommandHandler, ContextTypes

# Type-hinted coroutine handler
async def start(update: Update, context: ContextTypes.DEFAULT_TYPE) -> None:
    user = update.effective_user
    await update.message.reply_html(
        f"Hello {user.first_name}! Welcome to TGWAY Async Engine."
    )

def main():
    # 1. Build application instance
    app = ApplicationBuilder().token("7128392819:AAHq_EXAMPLE_KEY").build()

    # 2. Register command handlers
    app.add_handler(CommandHandler("start", start))

    # 3. Launch non-blocking polling or webhook
    app.run_polling()

if __name__ == "__main__":
    main()

2. Finite State Machines: Engineering Multi-Step ConversationHandlers

When building user registration wizards, KYC identity submission, or multi-step checkout dialogs, ConversationHandler provides a rock-solid Finite State Machine (FSM):

        ptb_conversation_fsm.py
        FSM State Machine


from telegram.ext import ConversationHandler, MessageHandler, filters

# Define FSM states as integers
NAME, EMAIL, CONFIRM = range(3)

async def start_registration(update: Update, context: ContextTypes.DEFAULT_TYPE) -> int:
    await update.message.reply_text("Please enter your Full Name:")
    return NAME

async def handle_name(update: Update, context: ContextTypes.DEFAULT_TYPE) -> int:
    context.user_data["full_name"] = update.message.text
    await update.message.reply_text(f"Got it, {update.message.text}! Now enter your Email:")
    return EMAIL

async def handle_email(update: Update, context: ContextTypes.DEFAULT_TYPE) -> int:
    context.user_data["email"] = update.message.text
    await update.message.reply_text("Type 'CONFIRM' to finalize your registration:")
    return CONFIRM

async def cancel(update: Update, context: ContextTypes.DEFAULT_TYPE) -> int:
    context.user_data.clear()
    await update.message.reply_text("Registration cancelled.")
    return ConversationHandler.END

# Assemble FSM Controller
conv_handler = ConversationHandler(
    entry_points=[CommandHandler("register", start_registration)],
    states={
        NAME: [MessageHandler(filters.TEXT & ~filters.COMMAND, handle_name)],
        EMAIL: [MessageHandler(filters.TEXT & ~filters.COMMAND, handle_email)],
        CONFIRM: [MessageHandler(filters.Regex("^CONFIRM$"), cancel)],
    },
    fallbacks=[CommandHandler("cancel", cancel)],
    per_user=True,
    per_chat=True
)

3. State Persistence & Production Error Traceback Trapping

If your bot server reboots or restarts for maintenance, all in-memory user sessions stored in context.user_data are lost unless persistence is enabled. PTB v20 provides plug-and-play persistence adapters:

PicklePersistence

Automatically serializes user data, chat data, bot data, and conversation states into a local disk file (bot_state.pickle) on shutdown, rehydrating them seamlessly on boot.

Global Error Handler

Attach app.add_error_handler(error_handler) to intercept every exception. Formats the full stack trace as an HTML <pre> block and sends it to a private DevOps Telegram channel.

Interactive Lab Simulator

PTB v20 Async Event Loop & FSM Simulator

ENGINE: PTB_V20_ASYNCIO

FSM User Input Simulator

Simulated Telegram Message Input:

Active FSM State

IDLE STAGE_NAME STAGE_EMAIL CONFIRMATION

            ASYNCIO EVENT LOOP STREAM
            EVENT_LOOP_ACTIVE

            [INIT] ApplicationBuilder initialized. Event loop running.

5. Complete System Architecture Blueprint: Python Async Bot Engineering

Inspect the comprehensive architectural infographic detailing ApplicationBuilder pipelines, ConversationHandler FSM state machines, PicklePersistence tiers, and global exception trapping:

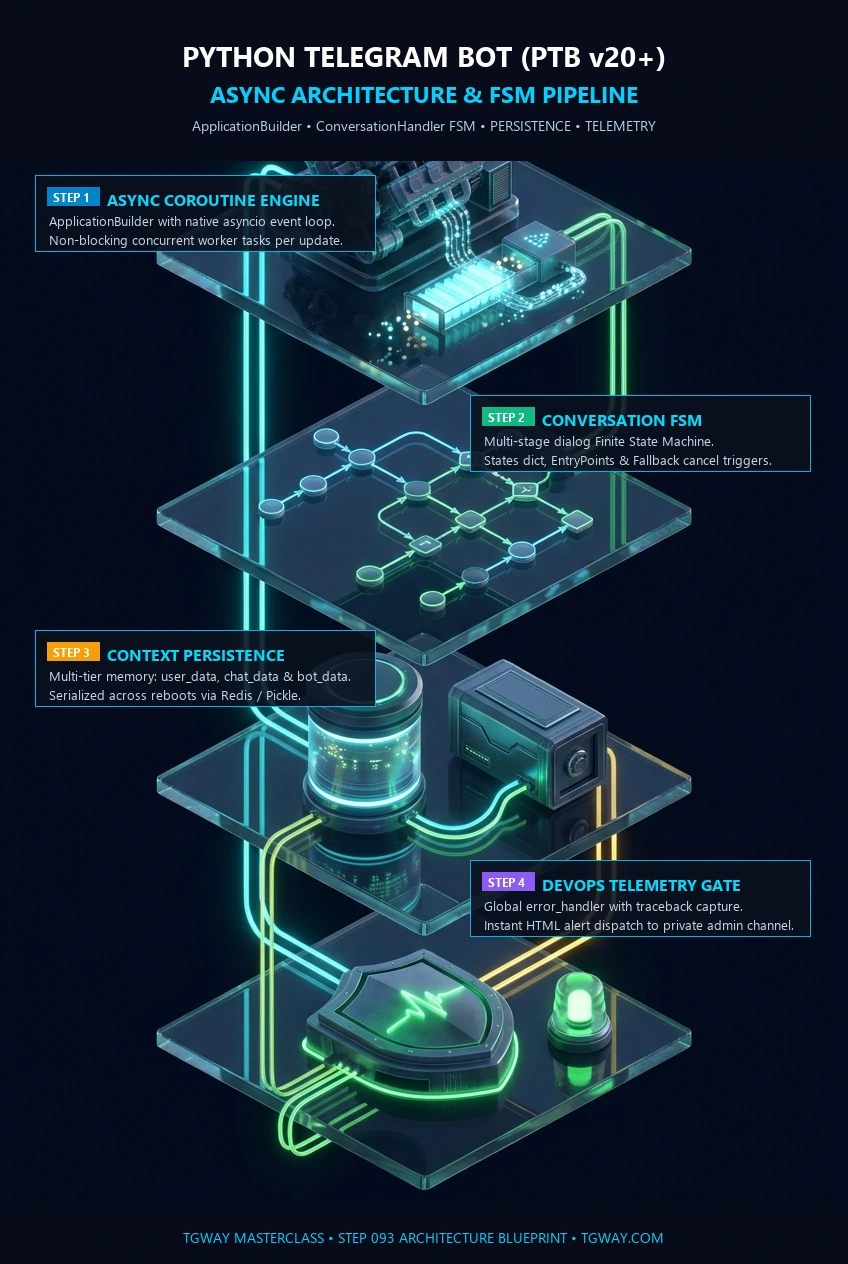

Python Telegram Bot Architecture Blueprint

Click to Enlarge High-Res Blueprint

Figure 93.2: Full 2:3 Masterclass Infographic Summary. Click to inspect high-resolution vector details.

6. Framework Comparison: python-telegram-bot vs. Aiogram vs. Telethon vs. Pyrogram

Framework	Protocol Level	Async Architecture	FSM Support	Best Use Case
python-telegram-bot (v20+)	HTTP Bot API	Native asyncio coroutines	ConversationHandler	Enterprise chatbots, complex wizards, stability
Aiogram 3.x	HTTP Bot API	Native asyncio + MagicFilter	FSMContext	Ultra-high speed microservices, Redis FSM
Telethon	Raw MTProto (Client)	Native asyncio	Manual FSM logic	Userbots, scraper tools, large file uploads (4GB)
Pyrogram	Raw MTProto (Client)	Native asyncio	Manual FSM logic	High-performance client automation

7. Frequently Asked Questions (FAQ)

Q1: How do I execute heavy CPU-bound tasks without freezing the bot in PTB v20?

Because Python's asyncio event loop runs on a single OS thread, executing synchronous heavy code (e.g. image resizing with Pillow or generating cryptographic hashes) will block all other users from receiving replies! Always offload blocking work using await asyncio.to_thread(cpu_heavy_function, arg1, arg2) or dispatch it to a Celery worker pool.

Q2: How do I run PTB v20 with Webhooks instead of run_polling()?

Use app.run_webhook(): specify listen="127.0.0.1", port=8080, webhook_url="https://bot.yourdomain.com/webhook", and secret_token="YOUR_SECRET". PTB starts an internal Tornado web server that responds to incoming HTTP POST webhooks automatically.

Q3: How do I store sensitive credentials securely?

Never hardcode tokens in Python scripts. Use python-dotenv to load os.getenv("TELEGRAM_BOT_TOKEN") from a .env file. Add .env to your .gitignore to prevent exposing tokens to public repositories.

Q4: How does ConversationHandler distinguish between different users?

By default, per_user=True and per_chat=True. PTB maintains an internal state key tuple (chat_id, user_id). This ensures that even if 500 members in the same group execute /register at the exact same moment, each user's dialog progression remains completely isolated.

Q5: Can I schedule recurring tasks with PTB v20?

Yes. PTB includes a native JobQueue powered by APScheduler: app.job_queue.run_repeating(callback_fn, interval=300, first=10). This allows running background crons, periodic price alerts, and chat cleanup tasks directly inside the bot process.

MODULE 08 • PYTHON MASTERY Next Architecture Milestone: Step 094

Ready for Step 094: Payments API: Credit Cards & Telegram Stars in Bot Workflows

Now that your Python backend runs concurrent coroutines and state machines, learn how to monetize your bot directly. In Step 094, we integrate the native Telegram Payments API: invoicing, sendInvoice, pre_checkout_query verification, and seamless checkout with Telegram Stars and traditional credit card merchant providers.
